Place of Origin : Zhejiang, China
Brand Name : OEM
Certification : CE GS ROHS TUV Emc
Packaging Details : with cartons
Supply Ability : 15000 Piece/Pieces per Month
MOQ : 200 Pieces
Price : $85.00 - $95.00/Pieces
Material / Metal Processed : Carbon Steel
Rated Input Voltage : 220 V
Wire Melting Type : Short Circuit Transfer
Max. Load Power Capacity : 3.5 kVA
Rated Output Current (MIG) : 140 A
Rated Output Voltage (MIG) : 56 V
Welding Current/Voltage Range : 20-140A
Rated Duty Cycle @40°C (MIG) : 35%
Wire Feeding Speed : 4 m/min
Condition : New
Dimensions : 42*20.5*30cm
Usage : home uses for welding
Voltage : 230V, or 110V
Weight (KG) : 13 KG
Year : 2020
Warranty : 1 Year
After-sales Service Provided : Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points : Multifunctional
Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
After Warranty Service : Video technical support, Online support, Spare parts
Local Service Location : None
Showroom Location : None
Marketing Type : New Product 2020
Machinery Test Report : Provided
Video outgoing-inspection : Provided
certificate : CE,GS,
model for selection : MIG-140
duty cycle : 35%
frequency : 50/60hz
current range : 20-140A
color : by customer's demand
wire diameter : 0.6mm-1.0mm
wire : flux cored wire or solid wire
Weight : 7kg
Port : FOB Ningbo,china
INTRODUCTION :
This highly developed digital controlled welder unit adopt advanced chip programmed inverter IGBT technology ,portable design .wire spool takes maximum 1 kg wire . the wire speed and working voltage are automatically matched at optimal status . The incredible welder always ensures excellent performance and high reliability ideal for home use , DIY , work shop , and all the way up for semi-industrial welding purpose .
Versatile mini MIG welding machine : MIG gas and no gas welding , MMA welding , TIG lift welding .
FEATURES :

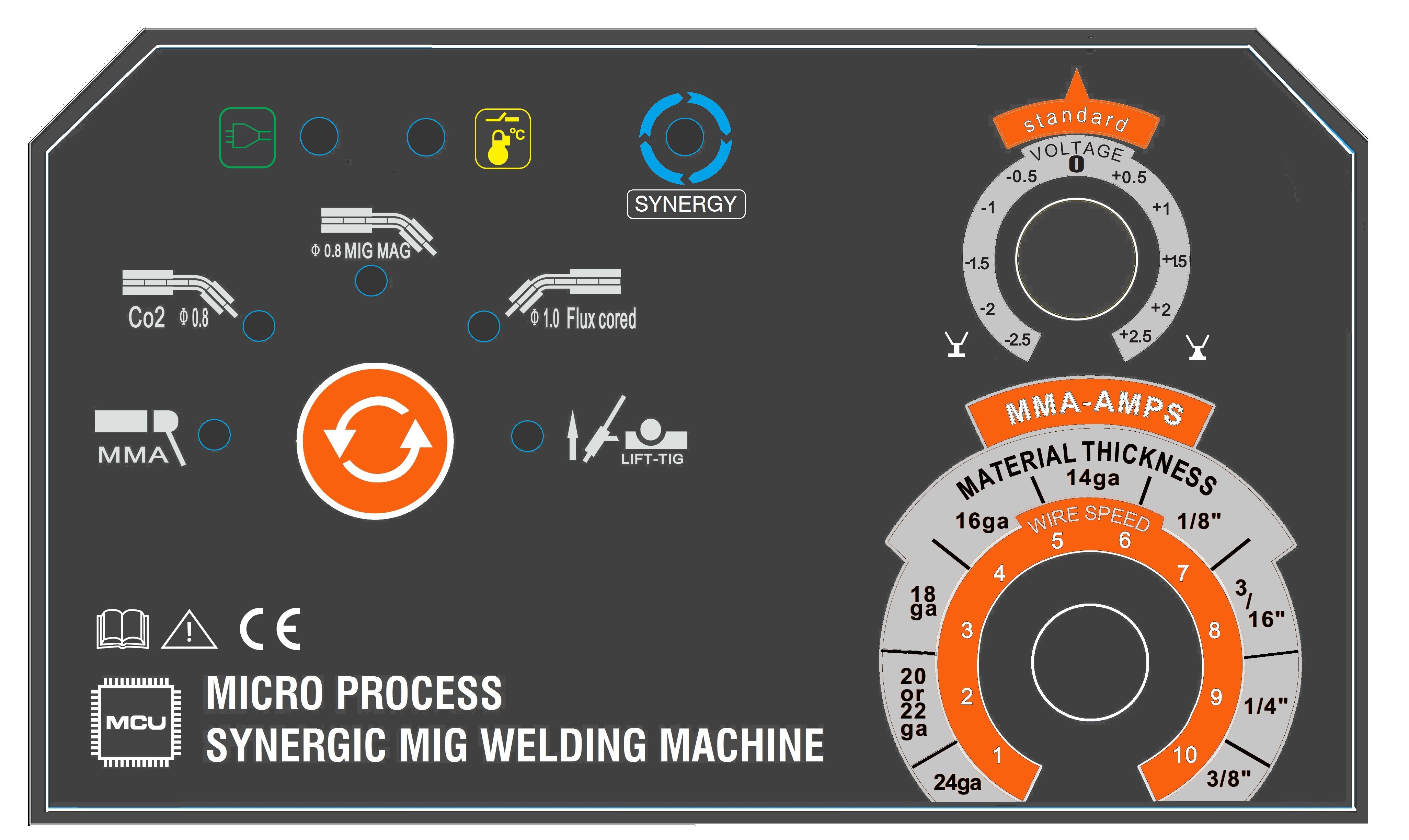

· Inverter IGBT technology . Micro control synergic system
· Precise regulation for welding current and wire speed .
· Thermal protection .
· Delivers versatile welding process MIG/MAG+MMA +TIG lift
· Wire spool to mount maximum 1 kg wire.
ADVANTAGES :
· Super MINI , portable design , light weight
· Excellent welding performance .
· Easy change for gas /no gas welding .
· High efficiency .
· Little spatter .
· Energy saving .
· Environment friendly.
SPECIFICATIONS :
· Voltage 220V .
· Input capacity :3.5KVA
· Output current range : 20-140A
· Duty cycle : 60%
· Efficiency : 85 %
· Insulation degree : F
· Protection degree : IP21S
· Usable wire diameter :0.6-1.0mm
· Electrode diameter :1.6-3.2mm
· Weight : Net wt :13kg , Gross wt : 15.5kg
· Machine size : 42x20.5x30cm
· Packing size : 56X24X36 cm

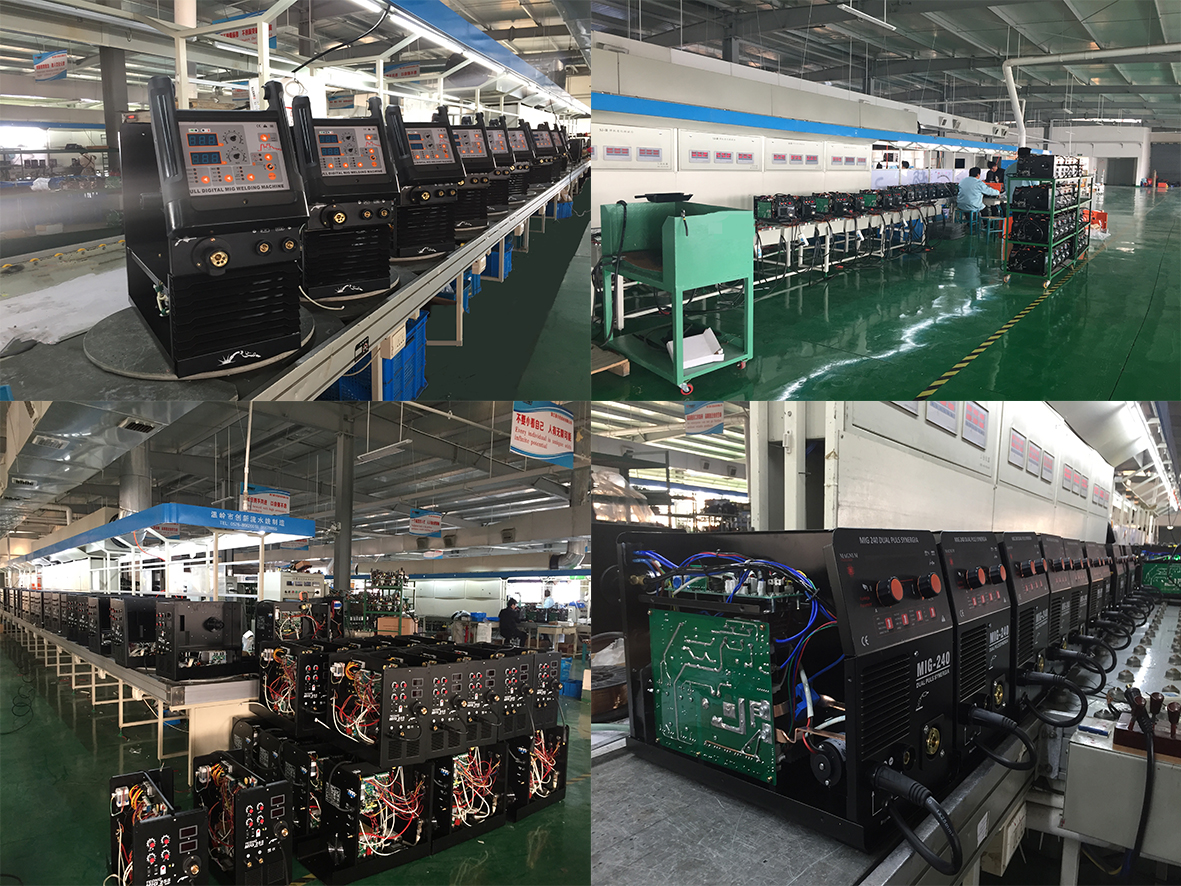

The Zhejiang Poney Electric Co.,Ltd is an export oriented enterprise which specializes in R&D , manufacturing , and sale. We are providing a diverse range of products which include welding machine , plasma cutting machine and battery charger . We believe quality is the key in the international arena ,thus sound management system and strict quality control system have been established to ensure stable performances of the goods . due to enormous investment on digital and automatic equipment , we have tripled our production capability .We pursue excellence by valuing the idea “ be careful in each detail , providing the world with the finest products “.
![]() |
